CTP Flexo Printing Plates - Cosmolight® CTP

World's first water wash flexo plate, Cosmolight®. Superior photopolymer technology produces a water-wash plate which is also durable to water-based ink

The CTP (computer-to-plate) technology is to be able to create higher and clearer reproduction of screen dots and letters. .


Key Advantages:

1. Lowest dot-gain and higher reproduction capability: Higher and clearer and reproduction of screen dots and letters.
2. Solvent-free in the plate making process, toxic-free for the operator: This revolutionary plate eliminates the need to use toxic, environmentally damaging washout solvents, and allows processing by "Water".
3. Reduction in the total cost: Consistent plate quality due to unnecessary to make a film-negative. Reduction in the personnel cost.
4. Improvement of productivity: Shorter plate-making time due to the simplification. Laser ablation layer is able to washout with water.

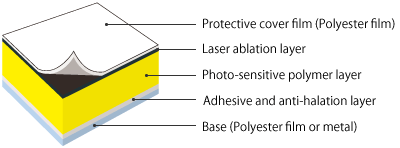

Structure of Plate:

Description:

Type	Base film	Hardness (ShoreA)	Thickness (mm)	Plaka Ebadı (mm/inch)	Key Advantages	Main Application
QS	Polyester 0.125mm	77 71	1.14 1.70	635×762/25"×30" 762×1016/30"×40" 900×1200/ 35.4"×47.2"	Press plate ready within one hour. Good resistance to solvent ink, water ink Usable on existing laser machines	Flexible Packaging Tag&Label Envelope
QH	Polyester 0.125mm	81 76	1.14 1.70

Plate-making Process:

Washout in plain tap water with a small amount of mild detergent. (Water temperature should be 40℃). Eliminate the use of dangerous hydrocarbon and hazardous water solvents.

All products are known throughout the world "ISO 9001" it is produced in the quality control system surveillance.
