Letterpress Printing Plate - Printight®

Leading the letterpress printing as the pioneer of water-wash photo-sensitive printing plate Printight®.

Wide range if applications and characteristics of Printight® are shown below. Please check each application and find out an appropriate plate you need.

Key Advantages:

1. Washout with Water: Printight® makes customers of this system possible to use ordinary water for washout.
2. Transparent and flexible plate : Transparent polyester film as a support material gives excellent dimensional stability and easy processability to printing machines. Steel base plates are also available.
3. Slip Coat: Has slip coat to get good contact between the plate and the negative film. You can use plain negative film.

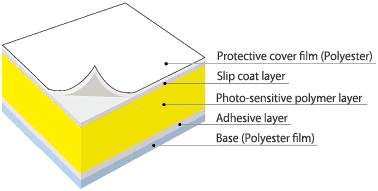

Structure of Plate:

Properties:

Spectral sensitivity	300–400nm
Thickness tolerance	±0.010mm(Film base) ±0.015mm(Metal base)
Resolving capability	150–200 lines/inch
Minimum dot image	0.10mm in diameter
Minimum line image	0.03mm in width

Description:

Type	Hardness Shore D	General Printing	Business form	Tag, Label	Offset (Dry-off)	Textile	Advantage
Q NEW	25–67					–	Water washable letterpress printing for CTP
K	67		–	–		–	Sharp and fine line (Flat bed printing)
L NEW	55	–	–		–	–	Highest quality rotary printing
J	55	–	–			–	High quality rotary printing
E	55		–	–	–	–	Excellent ink transfer, Outstanding ink transfer (Flat bed printing/Rotary printing)
S	40	–		–	–		Excellent ink transfer, Sharp and fine line. (Rotary printing) (Rotatif baskı)
U	27	–		–	–		Excellent ink affinity (High speed rotary printing)
B	25	–		–	–	–	Business form
C	25	–	–	–	–		Textile

Plate Making Process:

Washout with water at room temperature.

All products are known throughout the world "ISO 9001" it is produced in the quality control system surveillance.
